Parts for Alternator 0124325124

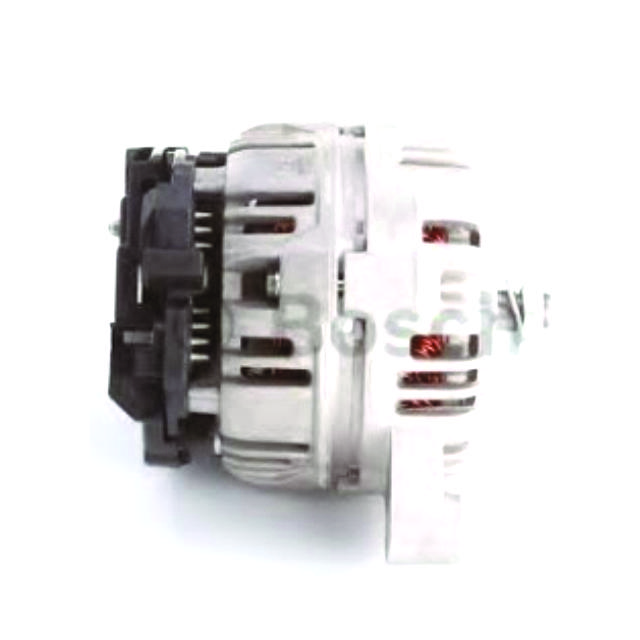

Bosch Alternator for Valtra 82665400

Specification

Alternator, 12 Volt, 90 Amp, Bosch> Type Ref #s 920-3103, Bosch 0 124 325 124 Valtra 82665400

Application

Valtra
NTN, 6003-2RS, Double Sealed Bearing 17mm X 35mm X 10mm - 53507
$14.98
Availability: In Stock
NTN, 6003-2RS, Double Sealed Bearing 17mm X 35mm X 10mm - 53507 53507
Alternator Ball Bearing NTN 17x47x14mm 6303-2RS - 54700
$18.98
Availability: In Stock
Alternator Ball Bearing NTN 17x47x14mm 6303-2RS - 54700 SP-6-303-4N
Voltage Regulator with Brushes Replacing F00M144142,  F00M145201, F00M145231, F00M145282, F00M145370  - 80201176
$52.98
Availability: In Stock
Voltage Regulator with Brushes Replacing F00M144142, F00M145201, F00M145231, F00M145282, F00M145370 - 80201176 80201176
Bosch Regulator F00M144142 Superseded from F00M144142395, F00M145201, F00M145231, F00M145282, F00M145370
$74.98
Availability: In Stock
Bosch Regulator F00M144142 Superseded from F00M144142395, F00M145201, F00M145231, F00M145282, F00M145370 F00M144142
Alternator Brushes, Set of 2, 3.9 x 5.9 x 16.4mm L, 53mm LL and welded Brass Needle for more application  - 73201112
$13.98
Availability: In Stock
Alternator Brushes, Set of 2, 3.9 x 5.9 x 16.4mm L, 53mm LL and welded Brass Needle for more application - 73201112 73201112
Bearing Retainer Plate for Bosch Alternators - 85200001
$16.79
Availability: In Stock
Bearing Retainer Plate for Bosch Alternators - 85200001 85200001
Bosch Alternator Bearing Tolerance Ring 35mm ID, 38mm OD, 50.2mm W - 92202019
$12.98
Availability: In Stock
Bosch Alternator Bearing Tolerance Ring 35mm ID, 38mm OD, 50.2mm W - 92202019 92202019
Alternator Rectifier Attaching Screw, M5-0.8, 22mm L, Phillips Round Washer Head (QTY 3)- 9620119
$14.98
Availability: In Stock
Alternator Rectifier Attaching Screw, M5-0.8, 22mm L, Phillips Round Washer Head (QTY 3)- 9620119 9620119
Alternator Pulley Retaining Hex Nut M16-1.5, 8mm Thick, 24mm Hex Socket Size (QTY 2)- 95001508
$12.29
Availability: In Stock
Alternator Pulley Retaining Hex Nut M16-1.5, 8mm Thick, 24mm Hex Socket Size (QTY 2)- 95001508 95001508
Alternator Pulley Spacer for Bosch Alternators 17mm ID, 39mm OD, 5mm L- 92202028
$33.98
Availability: In Stock
Alternator Pulley Spacer for Bosch Alternators 17mm ID, 39mm OD, 5mm L- 92202028 92202028
Alternator Case Thru Bolt, Bosch Alternator SRE M5-0.8 x 60mm Thru Bolt (QTY 4)- 9620125
$33.98
Availability: In Stock
Alternator Case Thru Bolt, Bosch Alternator SRE M5-0.8 x 60mm Thru Bolt (QTY 4)- 9620125 9620125
Alternator Rebuild Parts List for Bosch 0124325124 82665400 Bearings 53507 54700 Rectifier F00M123259 77201632 Regulators 80201176 f00m144142 73201112 73201109 85200001 92202019 9260108 9620119 95001508 92202028 9620125 340-24037
